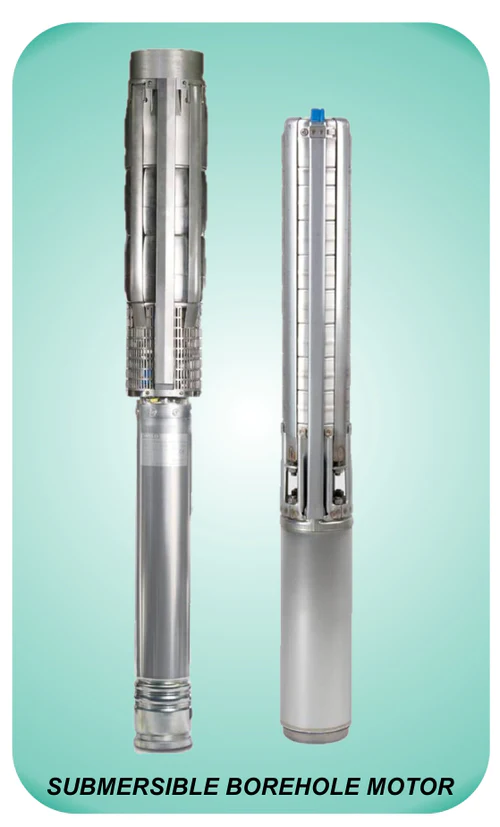

Stainless Steel Submersible Borehole Motor
For 4" & 6" Well Casing Diameter
High Quality Thrust Bearings
The trust bearing is of the kingsburry
type lubricated by the internal fluid.
During operation a wedge of water is
drawn between the stainless steel pivot
shoes and carbon disc to carry the thrust
load generated by the pump. Located inside
and at the bottom of the motor,
the bearing is sealed away from sand
and other contaminants.
Sand Resistant Slinger and Lip Seals
A stainless steel slinger and slinger
guide are also closely fit to help prevent
sand entry. Double rubber seals are installed
to prevent well water and contaminants from entering the motor.
High Reliable Carbon Bearing
Two water lubricated carbon bearings are used
as guide bearings. These have extremely large
surface area and result in extra alignment support-
less whipping and acts as a steady bushing.
Water-Filled Design
The motor lubrication is provided by the internal
cooling water consistings of a water, anti-freeze and
anti-rust mixture good to 30°C (-22°F). This mixture is
installed at the factory. Two water plugs are located
near of the top of the motor and are used by the installer
to check the water level or to the top off needed before installation.
Complete Corrosion and Water-Tight Protection
All main motor components are made of stainless steel:
including the can housing (water tight type motors have
baked epoxy coated steel housing), Shaft and bolts.
All other motor parts are coated with the baked epoxy coating.
