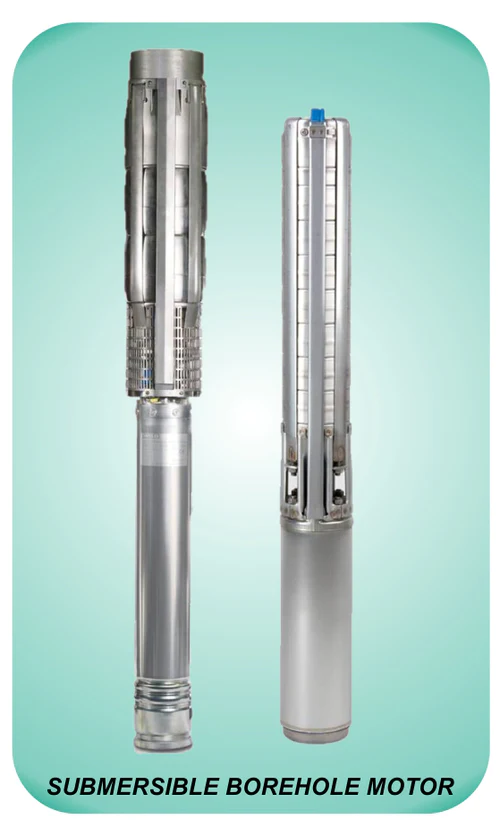

Stainless Steel Submersible Borehole Motor
For 4" & 6" Well Casing Diameter
High Quality Thrust Bearings
The trust bearing is of the kingsburry
type lubricated by the internal fluid.
During operation a wedge of water is
drawn between the stainless steel pivot
shoes and carbon disc to carry the thrust
load generated by the pump.
Located inside and at the bottom
of the motor, the bearing is sealed
away from sand and other contaminants.
Sand Resistant Slinger and Lip Seals
A stainless steel slinger and slinger
guide are also closely fit to help prevent sand entry.
Double rubber seals are installed to prevent wel
l water and contaminants from entering the motor.
High Reliable Carbon Bearing
Two water lubricated carbon bearings are used
as guide bearings.
These have extremely large surface area and result
in extra alignment support-less whipping and acts as a steady bushing.
Water-Filled Design
The motor lubrication is provided by the internal
cooling water consistings of a water, anti-freeze
and anti-rust mixture good to 30°C (-22°F).
This mixture is installed at the factory.
Two water plugs are located near of the
of the motor and are used by the installer to
check the water level or to the top off needed before installation.
Complete Corrosion and Water-Tight Protection
ALL main motor components are made of stainless steel
: including the can housing (water tight type
motors have baked epoxy coated steel housing),
Shaft and bolts. All other motor parts are coated
with the baked epoxy coating.
