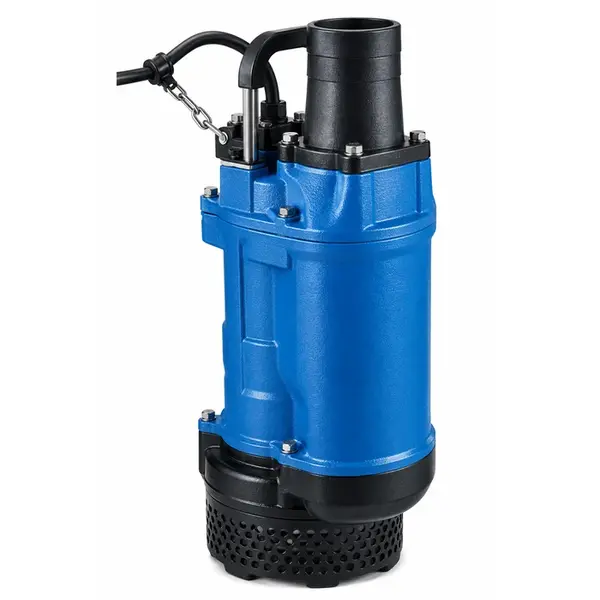

Shinsetsu Submersible Pump Drainage, SBZD-223
The Shinsetsu SBZD-223 is a high-performance submersible pump designed for demanding drainage applications across industrial, commercial, and municipal sectors. Engineered for reliability and exceptional durability, this pump series delivers efficient water transfer for even the toughest environments.
Key Features and Benefits:
- Versatile Power Options: Available with motor outputs ranging from 2 hp (1.5 kW) to 20 hp (15 kW) to meet various operational demands.
- Optimized for Industrial Use: Supports voltage ratings of 220 V (models up to 15 hp) and 440 V (20 hp model), ensuring compatibility with standard industrial electrical systems.
- Robust Performance: Designed for 60 Hz, 3-phase power, the SBZD-223 ensures stable operation and long service life under continuous use.
- Flexible Discharge Sizes: Offered in 2-inch, 3-inch, and 4-inch discharge configurations—ideal for a broad spectrum of drainage applications.
- Outstanding Flow Rates: Rated flow ranges from 15 m³/h to 60 m³/h, with maximum flow capacity reaching up to 84 m³/h, guaranteeing fast and efficient drainage.
- Superior Head Performance: Achieves rated head up to 42 meters and maximum head up to 56 meters, making it suitable for high-lift and long-distance water transfer.
- Extended Reach: Supplied with cable lengths up to 20 meters for greater installation flexibility in deep or hard-to-reach locations.
Technical Specifications:
| Model | Motor Output | Voltage | Frequency | Phase | Discharge | Rated Flow | Max Flow | Rated Head | Max Head | Cable Length | |------------|--------------|---------|-----------|-------|-----------|----------------|----------|------------|-----------|--------------| | SBZD-223-2 | 2 hp / 1.5 kW | 220 V | 60 Hz | 3 Ph | 2 in | 15 m³/h | 27 m³/h | 15 m | 27 m | 8 m | | SBZD-223-3 | 3 hp / 2.2 kW | 220 V | 60 Hz | 3 Ph | 2 in | 18 m³/h | 33 m³/h | 20 m | 26 m | 8 m | | SBZD-223-5 | 5 hp / 3.7 kW | 220 V | 60 Hz | 3 Ph | 3 in | 30 m³/h | 55 m³/h | 20 m | 29 m | 8 m | | SBZD-223-7.5 | 7.5 hp / 5.5 kW | 220 V | 60 Hz | 3 Ph | 3 in | 36 m³/h | 75 m³/h | 25 m | 34 m | 8 m | | SBZD-223-10 | 10 hp / 7.5 kW | 220 V | 60 Hz | 3 Ph | 4 in | 48 m³/h | 84 m³/h | 30 m | 31 m | 8 m | | SBZD-223-15 | 15 hp / 11 kW | 220 V | 60 Hz | 3 Ph | 4 in | 60 m³/h | 84 m³/h | 35 m | 48.5 m | 20 m | | SBZD-223-20 | 20 hp / 15 kW | 440 V | 60 Hz | 3 Ph | 4 in | 60 m³/h | 84 m³/h | 42 m | 56 m | 20 m |
Applications:
- Flood water drainage
- Industrial wastewater management
- Construction site dewatering
- Sump pits and basements
- Municipal water removal
Choose the Shinsetsu SBZD-223 Submersible Pump for uncompromising performance, maximum efficiency, and proven reliability—engineered to meet your most challenging drainage needs.
