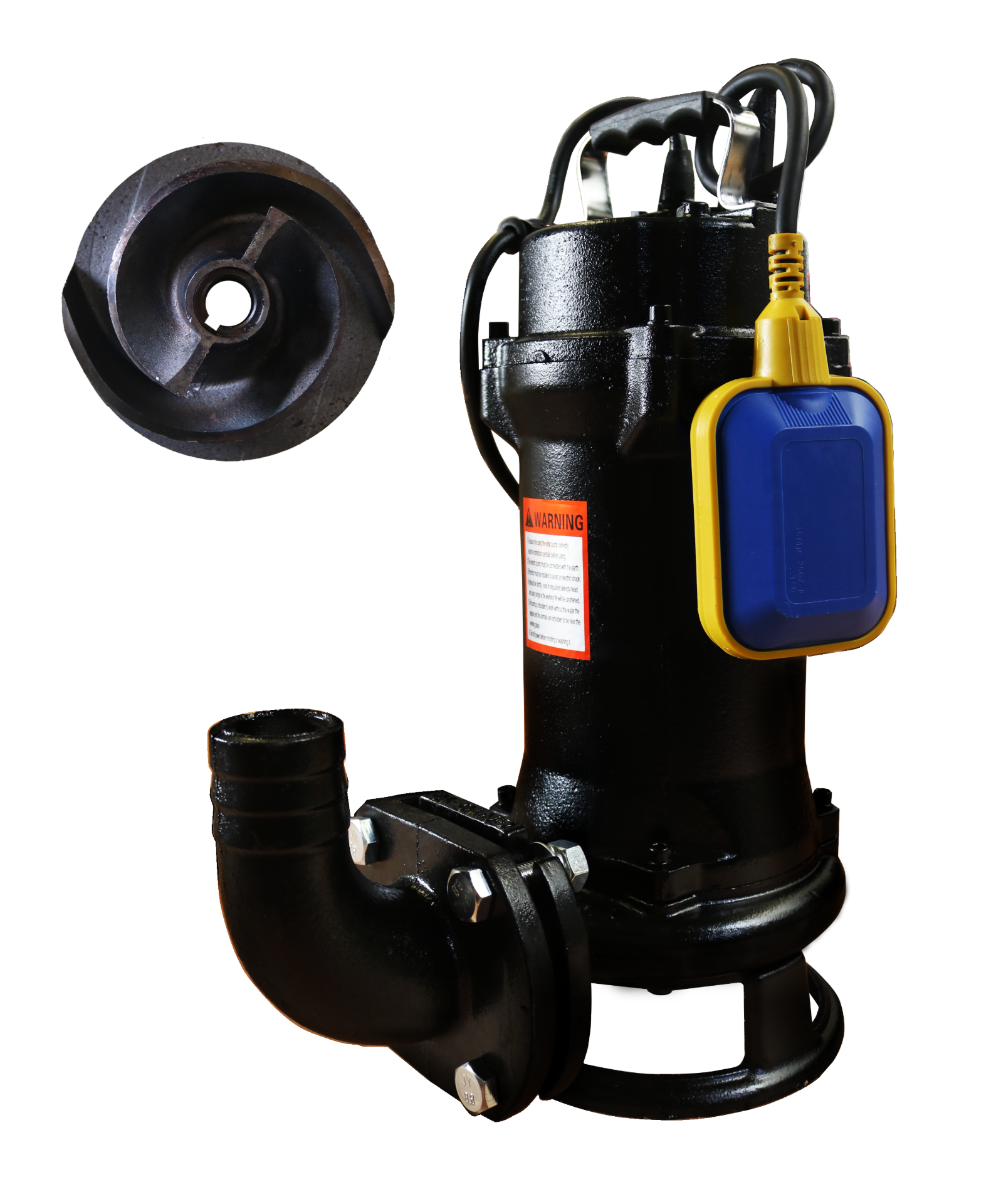

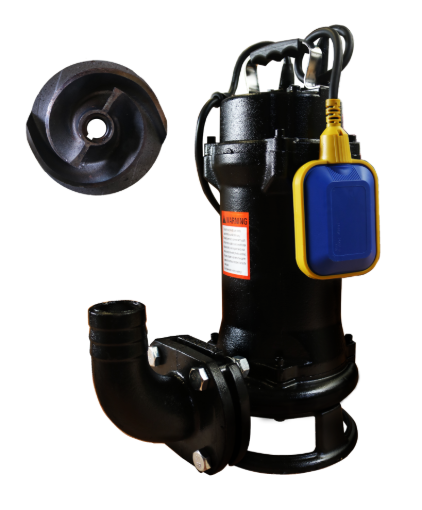

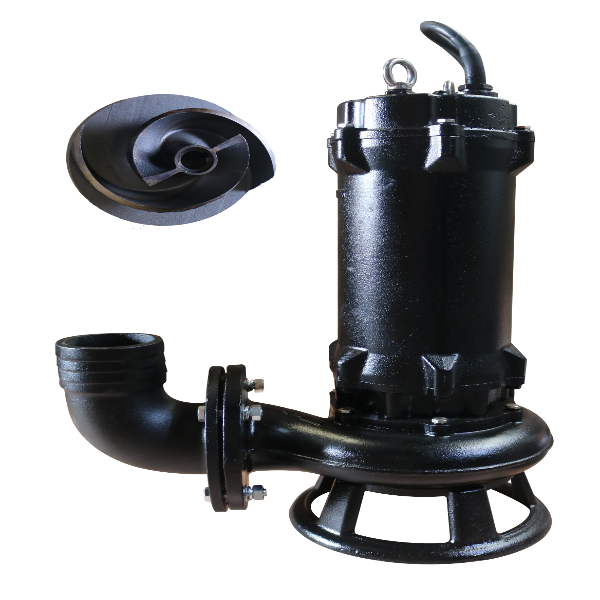

Shinsetsu Submersible Pump Cutting Vortex Sewage Type, SEP-112CF

Product Description – Shinsetsu Submersible Pump Cutting Vortex Sewage Type, SEP-112CF

Engineered for exceptional performance and reliability, the Shinsetsu Submersible Pump Cutting Vortex Sewage Type, SEP-112CF, stands as the industry’s leading solution for demanding sewage and wastewater applications. Designed for utility, efficiency, and durability, this pump is expertly suited for draining sewage, sanitation systems, factory wastewater, and mining operations.

Key Features and Specifications:

• Robust Motor Output: Available in 1 hp (0.75 kW), 2 hp (1.5 kW), 3 hp (2.2 kW), 5.5 hp (4 kW), 7.5 hp (5.5 kW), and 10 hp (7.5 kW) variants, catering to a wide range of operational needs.
• Voltage & Frequency: Operates seamlessly on 220V, 60 Hz, ensuring compatibility with standard industrial power supplies.
• High-Speed Performance: Delivers rapid pumping with a motor speed of 3500 rpm for efficient fluid transfer.
• Flexible Power Phases: Choose from single-phase (1) or three-phase (3) options to match your installation requirements.
• Versatile Bore Diameters: Ranging from 2” (50 mm) to 4” (100 mm), accommodating various pipeline configurations.
• Superior Rated Capacity (H/Q):
  • Head (H): From 10 m up to 20 m for single-phase, and up to 17 m for three-phase motors.
  • Flow Rate (Q): Capable of handling from 10 m³/h up to 100 m³/h.
• Peak Head Capacity: Maximum head heights range from 15 m to 34 m, ensuring optimal performance across diverse applications.
• Enhanced Free Passage: Processes particulates up to 20 mm (single-phase) and 40 mm (three-phase), reducing risk of clogging.
• Cutting Vortex Impeller: Precision-engineered cutting mechanism efficiently shreds solids, guaranteeing clog-free operation even in the most challenging environments.

Application Areas: The SEP-112CF is expertly designed for the toughest industrial and municipal settings:

• Sewage and Sanitation: Efficiently manages solid-laden wastewater, maintaining sanitary standards.
• Factories: Handles industrial effluent and process water with ease.
• Mining Sites: Ideal for dewatering pits and slurry management, even in abrasive conditions.

Why Choose Shinsetsu SEP-112CF? With a powerful motor, advanced cutting technology, and flexible configuration options, this submersible pump guarantees high reliability and minimum maintenance. Its cutting-edge vortex impeller design ensures continuous, trouble-free operation, making it the expert’s choice for sewage and wastewater management.

Invest in Shinsetsu – When reliability, power, and precision matter most.
