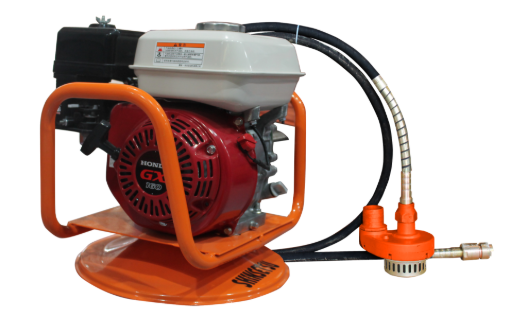

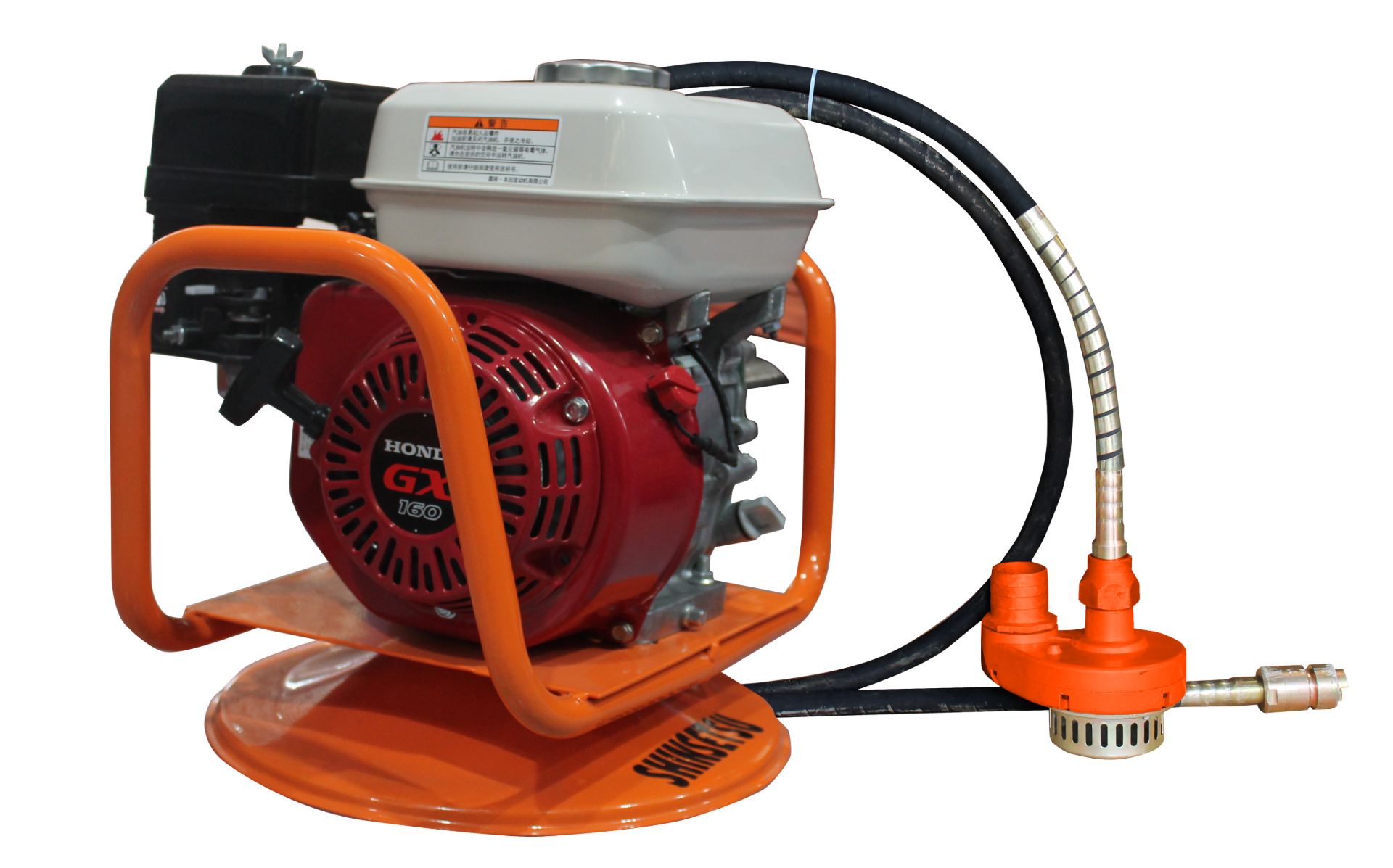

Shinsetsu Submersible Pump Engine Type, SSP-1175

Shinsetsu Submersible Pump Engine Type, SSP-1175

The SSP-1175 series is a mechanical submersible pump engineered for high performance and durability in demanding water transfer applications. Designed with a powerful engine and robust submersible construction, the SSP-1175 delivers reliable operation and extended service life.

Key Features & Specifications:

• Engine Choices:
  • SSP-1175: Equipped with the SGE-6500 Shinsetsu Gasoline Engine, providing 6.5 hp of consistent power.
  • SSP-1175R: Fitted with the EY20 Robin Gasoline Engine, delivering 5 hp of dependable operation.
  • SSP-1175H: Features the GX160 Honda Gasoline Engine, offering 5.5 hp renowned for reliability.
• Flexible Shaft Pump: Mechanical submersible pump with a flexible shaft design, ensuring efficient water movement and minimal maintenance requirements.
• Discharge Diameter: 3” (75 mm), suited for heavy-duty fluid transfer.
• Maximum Lift: Outstanding performance with a max lift capability of up to 16 meters.
• Max Capacity: Able to handle flow rates up to 1,200 liters per hour, making it ideal for large-scale applications.
• Revolution Speed: Operating range from 3,000 to 3,600 rpm, providing flexibility for various pumping demands.
• Hose Length: Supplied with a 6-meter hose for versatile positioning and ease of use.
• Weight: Compact and portable, weighing only 22 kg.

Expertly engineered, the Shinsetsu SSP-1175 Submersible Pump Engine Type is the professional's choice for construction, agriculture, flood control, and industrial dewatering. Its combination of flexible shaft mechanism, robust engine options, and high-capacity performance ensures maximum efficiency and reliability in the field. Choose Shinsetsu for unmatched pumping power and reliability.
