Product Name:

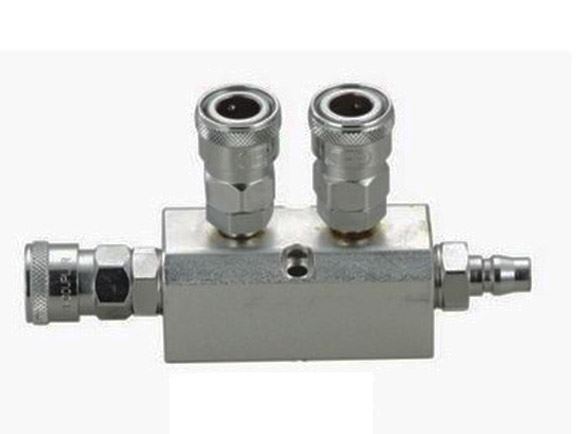

THB Quick Flow 1/2" Manifold - New Improved Steel Body, SM2BA
Product Description:
Upgrade your pneumatic system with the THB Quick Flow 1/2" Manifold (SM2BA Series), engineered for peak performance and reliability. Featuring a new improved steel body and a robust design, this manifold is ideal for demanding industrial and workshop environments where efficiency and durability are critical.
FEATURES:
- Advanced Construction:
Precision engineered with a durable aluminum main body and strengthened with high-quality steel couplers for enhanced toughness and longevity. - One Touch Coupler:
Fitted with a one-touch steel coupler for quick and secure hose connections, streamlining your workflow. - High Pressure Handling:
Designed for operation at a working pressure of up to 15 Bar (1.5 MPa), with a maximum pressure capability of 20 Bar (2 MPa), ensuring reliable performance even under heavy-duty conditions. - Wide Temperature Range:
Operates efficiently from -20℃ to +80℃, making it suitable for a variety of industrial applications. - Versatile Port Sizes:
Accommodates an input port size of 1/2” and output port size of 1/4”, compatible with a range of standard fittings and hoses. - Multiple Outlets:
Available in different configurations (2-way, 3-way, 4-way, 5-way) to meet various distribution requirements.
SPECIFICATIONS:
| Model | Description | Body | Coupler | Working Pressure | Max Pressure | Temp. Range | Port Size | Input Port Size | Output Port Size | |----------|-------------|---------|---------|------------------|--------------|------------------|------------|------------------|------------------| | SM2BA | 2-WAY | Aluminum| Steel | 15 Bar (1.5MPa) | 20 Bar (2MPa)| -20℃ ~ +80℃ | 1/4”, 1/2” | 1/2” | 1/4” | | SM3BA | 3-WAY | Aluminum| Steel | 15 Bar (1.5MPa) | 20 Bar (2MPa)| -20℃ ~ +80℃ | 1/4”, 1/2” | 1/2” | 1/4” | | SM4BA | 4-WAY | Aluminum| Steel | 15 Bar (1.5MPa) | 20 Bar (2MPa)| -20℃ ~ +80℃ | 1/4”, 1/2” | 1/2” | 1/4” | | SM5BA | 5-WAY | Aluminum| Steel | 15 Bar (1.5MPa) | 20 Bar (2MPa)| -20℃ ~ +80℃ | 1/4”, 1/2” | 1/2” | 1/4” |
Keywords:
Industrial manifold, quick coupler, steel body, aluminum, high pressure, durable, one touch, pneumatic system, 2-way, 3-way, 4-way, 5-way, SM2BA, THB brand, input port 1/2", output port 1/4"
Choose THB Quick Flow Manifolds for proven performance, robust construction, and maximum workflow efficiency in your pneumatic systems.
