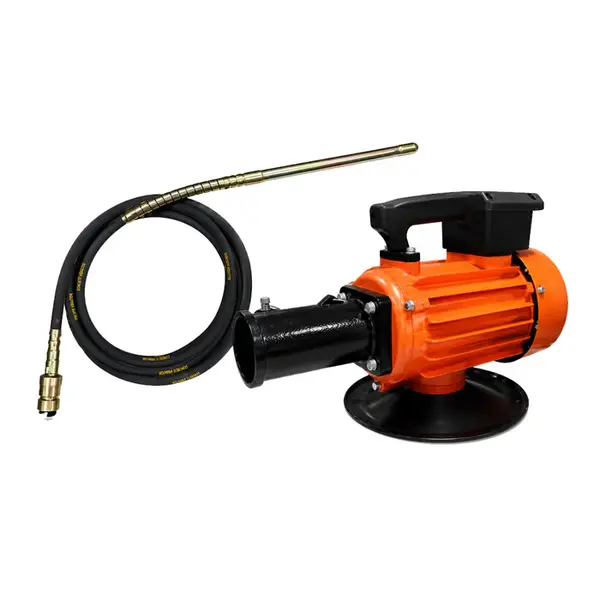

Shinsetsu Concrete Vibrator Motor Driven Set, SCV-1020

Product Description: Shinsetsu Concrete Vibrator Set, SCV-1020

The Shinsetsu Concrete Vibrator Set, SCV-1020 is an advanced, motor-driven concrete vibration solution designed to meet the rigorous demands of professional construction and civil engineering projects. Engineered to deliver superior concrete compaction and consistency, this set is essential for achieving high-strength, durable, and crack-free structural concrete.

Key Features and Benefits:

• Complete Set: Each set includes a high-performance vibrator poker, flexible shaft (hose), drive unit, and motor coupling, ensuring immediate usability out of the box.
• Motor-Driven Efficiency: Powered by robust SEM-1020 or SEM-1030 motors, this system delivers continuous, reliable vibration with optimal energy efficiency.
• Multiple Poker Sizes (mm): Available in poker head diameters of 28, 32, 38, 50, and 70 mm to suit various job site requirements, from fine, detailed work to heavy-duty compaction.
• Poker Length: Standard 6-meter length allows for deep and effective vibration, even in large concrete pours.
• Drive Options: Ready for seamless connection to high-quality Dynapac or Hex drive systems, ensuring compatibility and reliable performance in demanding environments.
• Precision Motor Coupling: Secure motor coupling technology guarantees vibration is efficiently transferred directly to the poker, maximizing compaction and minimizing wear.

Technical Specifications:

| MODEL | POKER SIZE (mm) | LENGTH (m) | DRIVE | MOTOR COUPLING |

SCV-1020 | 28 | 6 | SEM-1020 | Dynapac

SCV-1120 | 32 | 6 | SEM-1020 | Dynapac

SCV-1220 | 38 | 6 | SEM-1020 | Dynapac

SCV-1130 | 28 | 6 | SEM-1030 | Dynapac

SCV-1230 | 32 | 6 | SEM-1030 | Dynapac

SCV-1330 | 38 | 6 | SEM-1030 | Dynapac

SCV-1430 | 50 | 6 | SEM-1030 | Dynapac

SCV-1530 | 70 | 6 | SEM-1030 | Dynapac

SCV-1020X | 28 | 6 | SEM-1020 | Hex

SCV-1120X | 32 | 6 | SEM-1020 | Hex

SCV-1220X | 38 | 6 | SEM-1020 | Hex

SCV-1130X | 28 | 6 | SEM-1030 | Hex

SCV-1230X | 32 | 6 | SEM-1030 | Hex

SCV-1330X | 38 | 6 | SEM-1030 | Hex

Expert Application:

• Ideal For: Foundations, columns, beams, slabs, pre-cast elements, and high-specification concrete works.
• Construction Advantage: Ensures rapid air release from poured concrete, resulting in higher density and improved structural integrity.
• Durability: Rugged design for heavy daily use in the most challenging jobsites.

Choose the Shinsetsu Concrete Vibrator Set, SCV-1020 for professional-grade compaction performance, reliability, and versatility on every project. Contact us for pricing and detailed technical support.
