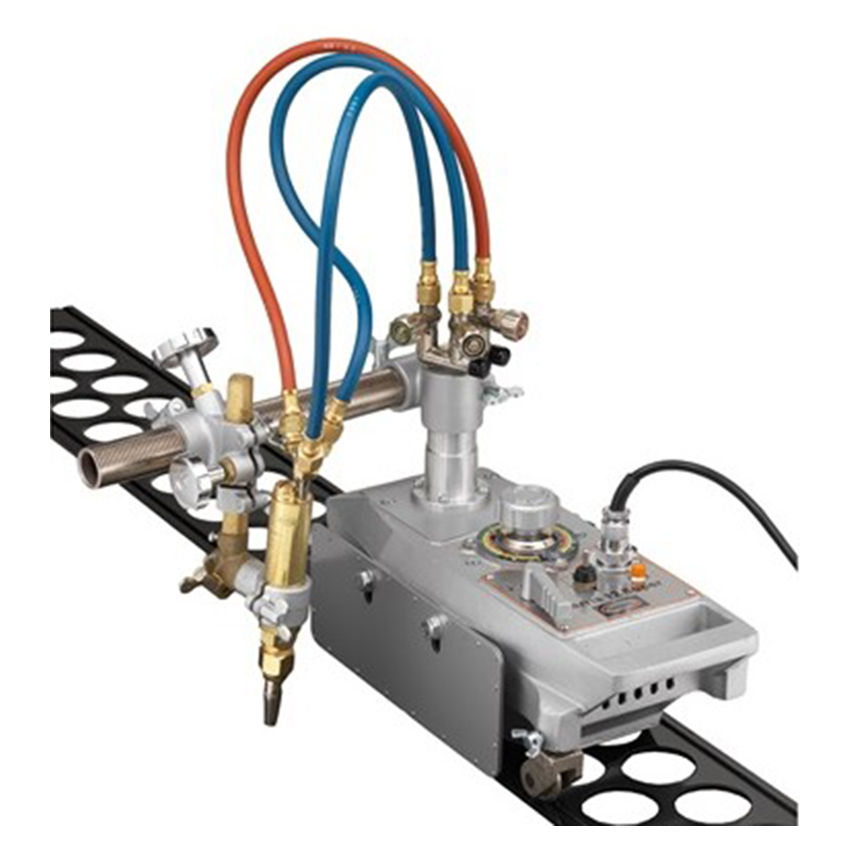

Harris Portable Cutting System-Super, PCS-SUPER-220

FEATURES

•Straight line and Circle Cutting or Welding.

•Double Cone Stepless Drive System-Maintaining Constant travel speed even with high temperatures and allowing greater speed control.

•Plate Ride Torch Option, Automatically maintains torch distance during cutting.

•Modular Straight 1800mm Rail Sections (Order Separately)

•Circle Rail 40-360mma and 1150-2400 mm (Order Separately)

•Speed Meter dial indication with conversion scale

SPECIFICATIONS

Cutting Thickness : Up to 300mm

Cutting Speed : 80-800mm/min

Speed Control : Single Cone Speed System

Mechanical Regulation

Power Source : 220V AC

Weight : 11kg

Overall Measurement : 430mm (L) x 170mm (W) x 215mm (H)

Cutting Torch : Propane : 198-4F

Acetylene : 198-4

Cutting Tips(*) : Propane : 6290-VCC (Size 5/0 to 5-1/2)

6290-NH(Size 6-7/)

Acetylene : 6290-VAX (Size 1 to 6)

MODEL : PCS-SUPER-220

Package Includes

1. Cutting Machine with Connecting Lead and Rubber Connection hose from Machine to cutting Torch

2. Harris Cutting Torch Model 198 with 3 Tips

3. Tool Set

4. Operation Manual
