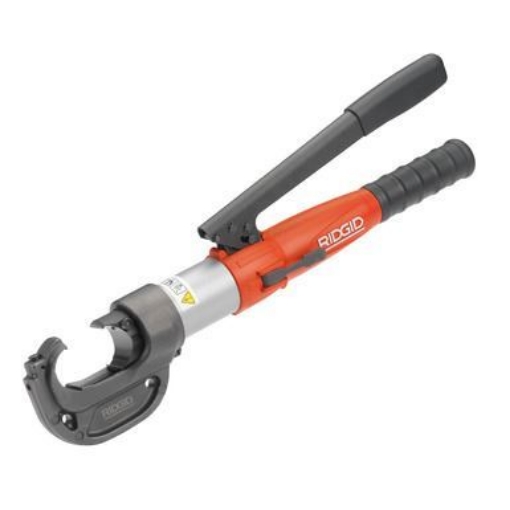

Ridgid RE 130-M Manual Hydraulic Crimp Tool

Name: Ridgid RE 130-M Manual Hydraulic Crimp Tool
SKU: Cat. No. 48378 RE 130-M
Price: 111800.00 PHP
Availability: InStock

Manufacturer: Ridgid

Be the first to review this product

Introducing the world’s lightest and easiest-to-use 130kN Manual Hydraulic Crimp Tool with C-Frame Weighing only 5.3 kgs, the RE 130-M provides 130kN of hydraulic force output to crimp copper lugs and connectors up to 400 mm2. The RE 130-M is specially designed for one-person operation. It features an industry-exclusive Head Stand which allows users to more easily position the cable and lug between dies and crimp with greater stability. For increased maneuverability in tight spaces, the crimp head can be rotated up to 330°. Featuring the patent-pending RIDGID® RapidAdvance System™, the RE 130-M requires only 2 pumps to engage the lug. This minimizes unnecessary pumping and reduces user fatigue. It includes an integrated pressure-relief valve that indicates when the maximum pressure is reached and the crimp is complete. The ram can then be manually retracted by simply pressing on the pressure release lever.

SKU: Cat. No. 48378 RE 130-M

Vendor: Screwking Hardware Corp.

Choose Set & Catalog No. *

Availability: In stock

Price: ₱172,000.00

Your price: ₱111,800.00

Qty:

i h

Delivery date: 1 week

FEATURES

Lightest 130 kN tool on the market*, for more portability and ease of use.
Unique RIDGID® RapidAdvance System™ that engages quickly and easily crimps lugs.
Low handle force reduces hand strain and operator fatigue.
Industry exclusive Head Stand allows for one-man operation. Easily position cable / lug between the dies and complete the crimp.
15 slots for crimping dies in the carrying case with special slot decals for quick die identification and retrieval.

SPECIFICATIONS

130 kN hydraulic force output and 42 mm stroke to easily accomodate large size lugs and connectors (up to 400 mm² Cu).
	RIDGID® RapidAdvance System™ quickly engages the lug in just 2 pumps to minimize unnecessary pumping
	Built-in Pressure Relief-valve which signals when the maximum force is reached and crimping is complete
	Manual ram retraction when the crimp is complete or in case of need
	330° head rotation for better access in tight spaces
	Rubber grips for superior comfort and control
Length	557mm
Weight	5.3 kg
Capacity	Max. 400 mm² Cu; Max. 240 mm² Al
Includes	RE 130-M tool; Head Stand; RIDGID Die Slots Decals; Blow molded case; Operator’s Manual

Catalog No. 51438 RE130 : Crimping Die Kit for RE130 Round (10-40mm -13 Sizes )

RE-130M Crimping Die : 13Size (10mm; 16mm; 25mm; 35mm; 50mm; 70mm; 95mm; 120mm; 150mm; 240mm; 300mm; 400mm.

Order Informations

CATALOG NUMBER	DESCRIPTION	WEIGHT (KG)
51518	Round Hex Crimp Die DIN 10 mm² - CU	0,28
51523	Round Hex Crimp Die DIN 16 mm² - CU	0,28
51528	Round Hex Crimp Die DIN 25 mm² - CU	0,28
51533	Round Hex Crimp Die DIN 35 mm² - CU	0,28
51538	Round Hex Crimp Die DIN 50 mm² - CU	0,28
51543	Round Hex Crimp Die DIN 70 mm² - CU	0,28
