Trolley Pure Iron Wheel Caster Specifications (HQ) 4",5",6",8"

Name: Trolley Pure Iron Wheel Caster Specifications (HQ) 4",5",6",8"
SKU: TPIWHQ
Availability: InStock

Manufacturer: Harlem

Iron Wheel Caster Specifications (HQ)

SKU: TPIWHQ

₱0.00

Qty:

i h

Iron Wheel Caster Specifications (HQ)

Size	Type	Wheel Diameter	Wheel Width	Overall Height	Top Plate (L × W)	Bolt Hole Spacing	Approx. Weight	Load Capacity*
4"	Fixed	100 mm	40 mm	143 mm	115 × 100 mm	85 × 72 mm	2.2–2.6 kg	300 kg
4"	Swivel	100 mm	40 mm	143 mm	115 × 100 mm	85 × 72 mm	2.4–2.8 kg	300 kg
4"	Swivel with Brake	100 mm	40 mm	143 mm	115 × 100 mm	85 × 72 mm	2.6–3.0 kg	300 kg
5"	Fixed	125 mm	45 mm	165 mm	115 × 100 mm	85 × 72 mm	2.8–3.3 kg	400 kg
5"	Swivel	125 mm	45 mm	165 mm	115 × 100 mm	85 × 72 mm	3.1–3.6 kg	400 kg
5"	Swivel with Brake	125 mm	45 mm	165 mm	115 × 100 mm	85 × 72 mm	3.3–3.8 kg	400 kg
6"	Fixed	150 mm	50 mm	190 mm	115 × 100 mm	85 × 72 mm	3.8–4.4 kg	500 kg
6"	Swivel	150 mm	50 mm	190 mm	115 × 100 mm	85 × 72 mm	4.1–4.8 kg	500 kg
6"	Swivel with Brake	150 mm	50 mm	190 mm	115 × 100 mm	85 × 72 mm	4.4–5.0 kg	500 kg
8"	Fixed	200 mm	50 mm	245 mm	115 × 100 mm	85 × 72 mm	4.8–5.5 kg	600 kg
8"	Swivel	200 mm	50 mm	245 mm	115 × 100 mm	85 × 72 mm	5.3–6.0 kg	600 kg
8"	Swivel with Brake	200 mm	50 mm	245 mm	115 × 100 mm	85 × 72 mm	5.6–6.3 kg	600 kg

*Load capacities are approximate per caster and may vary depending on the manufacturer and operating conditions.

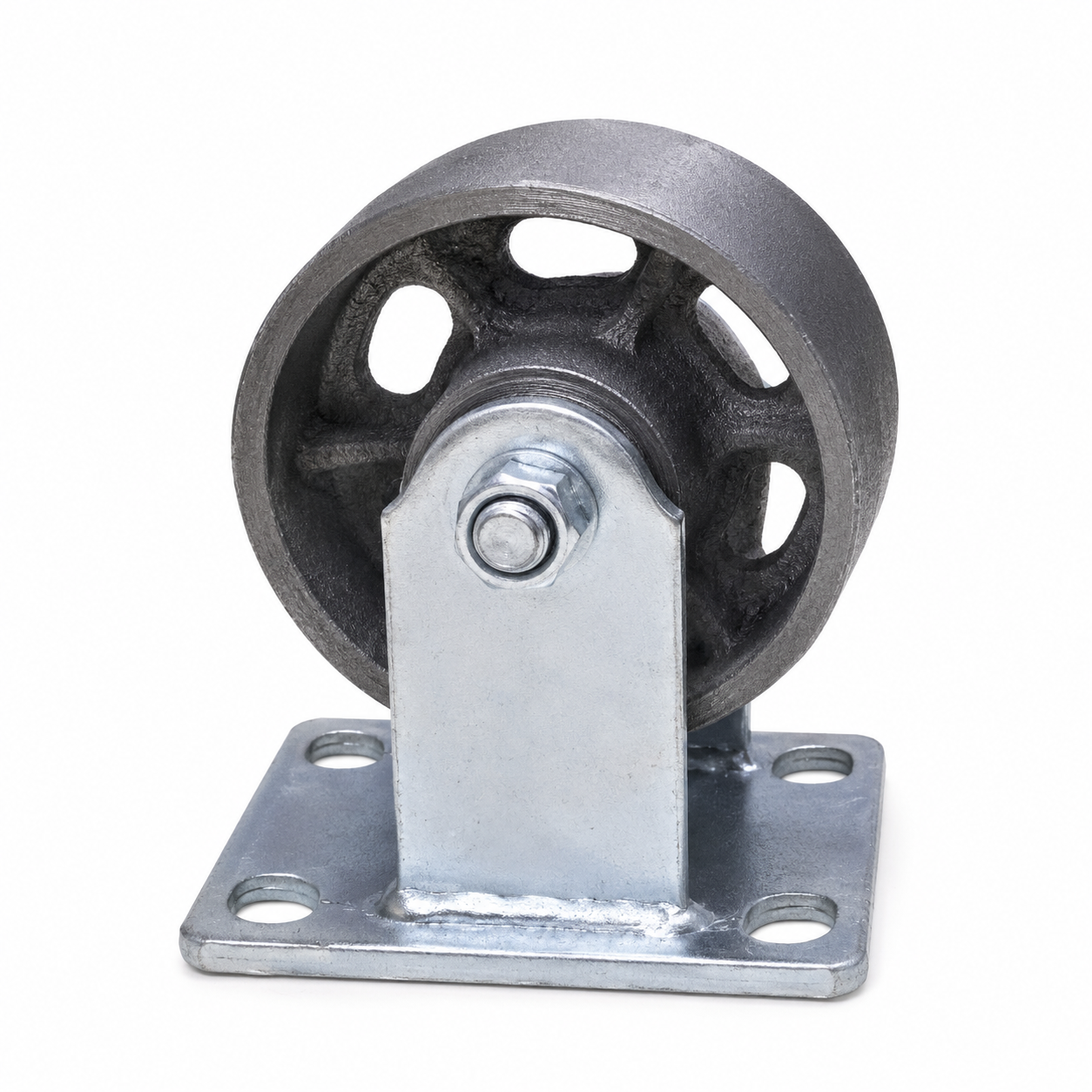

Iron Wheel Fixed (HQ)

Heavy-duty cast iron wheel
Rigid (fixed) mounting
Zinc-plated steel bracket
Suitable for industrial carts, machinery, warehouse trolleys, and material handling equipment

Iron Wheel Swivel (HQ)

Iron Wheel Swivel with Brake (HQ)

Heavy-duty cast iron wheel
360° swivel with foot-operated total lock brake
Strong galvanized steel bracket
Ideal for industrial, factory, and warehouse applications requiring secure positioning
