Hitachi Air Compressor

Manufacturer: Hitachi

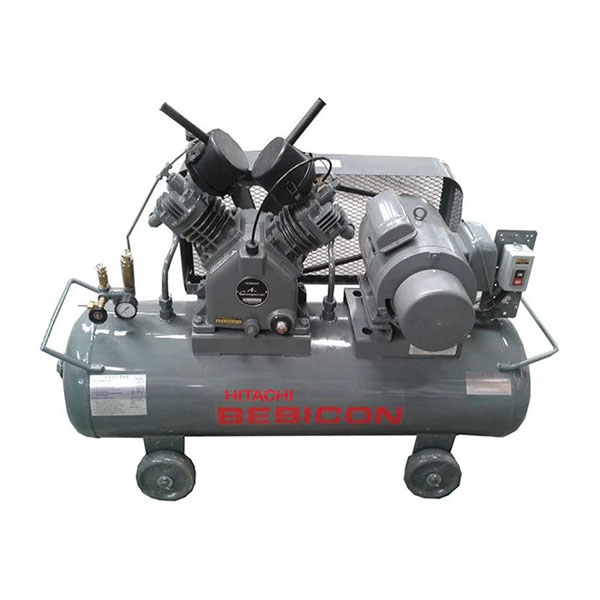

Picture of Hitachi Air Compressor Picture of Hitachi Air Compressor
Be the first to review this product
Hitachi Air Compressor (Bebicon)
SKU: 0.75U-9.5VS6A , 1.5U-9.5V6A , 2.2U-9.5VS6A , 5.5U-9.5V6A , 3.7P-14V6A , 5.5P-14V6A
Vendor: Screwking Hardware Corp.
*
₱5.00
i h
Please select the address you want to ship to
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

BEBICON Air Compressors
Heavy Duty

Model 0.75U-9.5VS6A 0.75U-9.5V6A 1.5U-9.5VS6A
1.5U-9.5V6A
Tank Type Horizontal
Operating System Automatic unloader type
Motor Output (kw) 0.75 0.75 1.5 1.5
Maximum Pressure MPa 0.93
Cylinder Diameter (mm) x Stroke (mm) x Number of Cylinders 50 x 65 x 1 72 x 65 x 1
Compressor speed (min-1) 990 970
Displacement (l/min) 126   257
Capacity at Maximum Pressure 80   165
Air Tank Capacity (L) 60   80
Power Source (PH) 1 3 1 3
Standard Accessories Pressure Gauge, Safety valve, Hose joint, V-Belt, Belt Cover, Silencer stop valve, Air outlet 1/4BX1 for 0.75 &1.5kW
Standard Dimensions (WxLxH) 931 x 376 x 816
1,173x380x867

Weight 79 72 102 90
Noise Level dB(A) 70 72



Model 2.2U-9.5VS6A 2.2U-9.5V6A 3.7U-9.5V6A 5.5U-9.5V6A
7.5U-9.5V6A
Tank Type Horizontal
Operating System Automatic unloader type
Motor Output (kw) 2.2 3.7 5.5 7.5
Maximum Pressure MPa 0.93
Cylinder Diameter (mm) x Stroke (mm) x Number of Cylinders 72 x 65 x 2 L) 90x85x1
H) 50x85x1		 L) 105 x 85 x 1
H) 60 x 85 x 1
L) 905 x 85 x 2
H) 72 x 85 x 1
Compressor speed (min-1) 730 1000 1080 950
Displacement (l/min) 386 541 795 1027
Capacity at Maximum Pressure 265 440 630 840
Air Tank Capacity (L) 90 125 150 235
Power Source (PH) 1 3 3 3 3
Standard Accessories Pressure Gauge, Safety valve, Hose joint, V-Belt, Belt Cover, Silencer stop valve, Air outlet  1/4BX2 for 2.2 KW , 1/4BX1 & 3/8BX1 for 3.7 & 5.5 kW, 1/4BX1 & 3/4BX1 for 7.5 & 11kW 1BX1 for 15 kw
Standard Dimensions (WxLxH) 1283 x 403 x 808 1345 x 428 x 948 1470 x 482 x 979
1643 x 547 x 1103
Weight 134 117 158 203 280
Noise Level dB(A) 72 74 76 79



Model 3.7P-14V6A 5.5P-14V6A 7.5P-14V6A
Tank Type Vertical Vertical Vertical
Operating System Automatic unloader type
Motor Output (kw) 3.7 5.5 7.5
Maximum Pressure MPa 1.23 / 1.37 1.23 / 1.37 1.23 / 1.37
Cylinder Diameter (mm) x Stroke (mm) x Number of Cylinders L) 90x85x1
H) 50 x 85 x 1		 L) 105 x 85 x 1
H) 60 x 85 x1		 L) 900 x 85 x 2
H) 72 x 85 x 1
Compressor speed (min-1) 900 970 900
Displacement (l/min) 487 714 973
Capacity at Maximum Pressure 400 550 760
Air Tank Capacity (L) 300 300 300
Power Source (PH) 3 3 3
Standard Accessories Pressure Gauge, Safety valve, Hose joint, V-Belt, Belt Cover, Silencer stop valve
3/8 BX1 for 3.7 & 5.5 kW 3/4BX1 for 7.5kW
Standard Dimensions (WxLxH) 957 x 590 x 1732 1025 x 611 x 1734
1102 x 634 x 1814
Weight 260 317 363
Noise Level dB(A) 75 76 80
