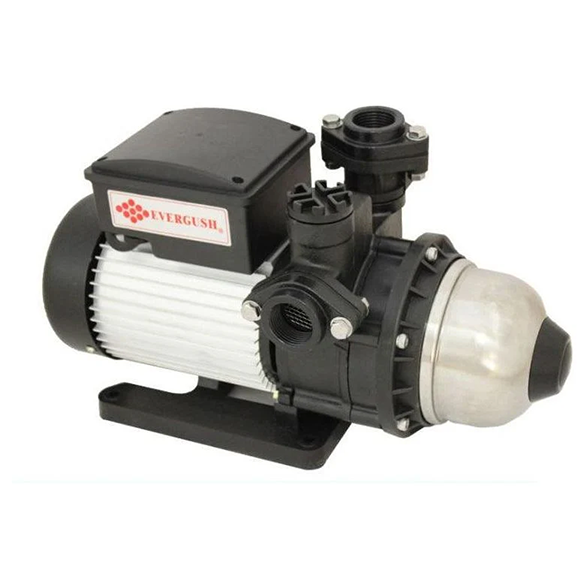

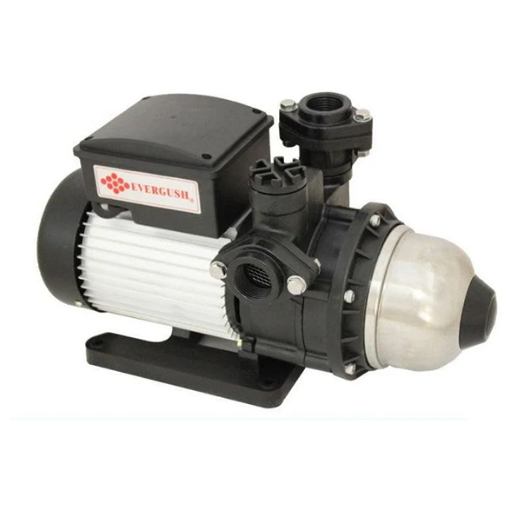

CPU-CONTROLLED AUTO BOOSTER SILENT PUMPS

ESV-Series (60 Hz)

Applications

• Automatically boost water pressure to the house, apartment, villa, school, restaurant, school, etc.
• Automatically boost water pressure to garden sprinkler, heater, toilet, washing machine, sanitary equipment, etc.

Features

• All-in-one booster pump unit, The ESV pump is mainly consisted of pump, motor, flow sensor, pressure tank and CPU Board.
• Auto run and boost water pressure while water is consumed. Auto stop running while no water is consumed.
• Dry running Shutdown protection to avoid motor  burnout, ESV pump will shutdown within 1 minute when dry running occurs.
• Built-in thermal protector can prevent pipeline burst due to abnormal frequent on/off.
• Low Noise operation; Compact design for space saving.
• Always keep stable water pressure while using (hot) shower.

Motor Specifications

• Voltage: 220V/60 Hz
• Enclosed class: IP54
• Insulation: B Class
• Enclosed Fan cooled, 2P Motor
• Built in overload motor protector

Operating Conditions

• Ambient Temp: Max 40 Celsius
• Liquid Temp: 0~40 Celsius
• Relative Humidity: Max 85% RH
• Working pressure: Max 5 bar
• Before starting the pump, make sure inlet pressure is lower than factory pre-set activation pressure.
