Iron Wheel Caster Specifications (HQ)
| Size | Type | Wheel Diameter | Wheel Width | Overall Height | Top Plate (L × W) | Bolt Hole Spacing | Approx. Weight | Load Capacity* |
|---|
| | | | | | | |
|
| 8" | Fixed | 200 mm | 50 mm | 245 mm | 115 × 100 mm | 85 × 72 mm | 4.8–5.5 kg | 600 kg |
| 8" | Swivel | 200 mm | 50 mm | 245 mm | 115 × 100 mm | 85 × 72 mm | 5.3–6.0 kg | 600 kg |
| 8" | Swivel with Brake | 200 mm | 50 mm | 245 mm | 115 × 100 mm | 85 × 72 mm | 5.6–6.3 kg | 600 kg
|
*Load capacities are approximate per caster and may vary depending on the manufacturer and operating conditions.
Brand : Harlem
STOCK No. :
- HS4164 FIXED
- HS4160 SWIVEL
- HS4168 SWIVEL WITH BRAKE
Catalogue Product Description
Iron Wheel Fixed (HQ)
- Heavy-duty cast iron wheel
- Rigid (fixed) mounting
- Zinc-plated steel bracket
- Suitable for industrial carts, machinery, warehouse trolleys, and material handling equipment
Iron Wheel Swivel (HQ)
- Heavy-duty cast iron wheel
- Smooth 360° swivel action
- Zinc-plated steel bracket
- Designed for easy maneuverability under heavy loads

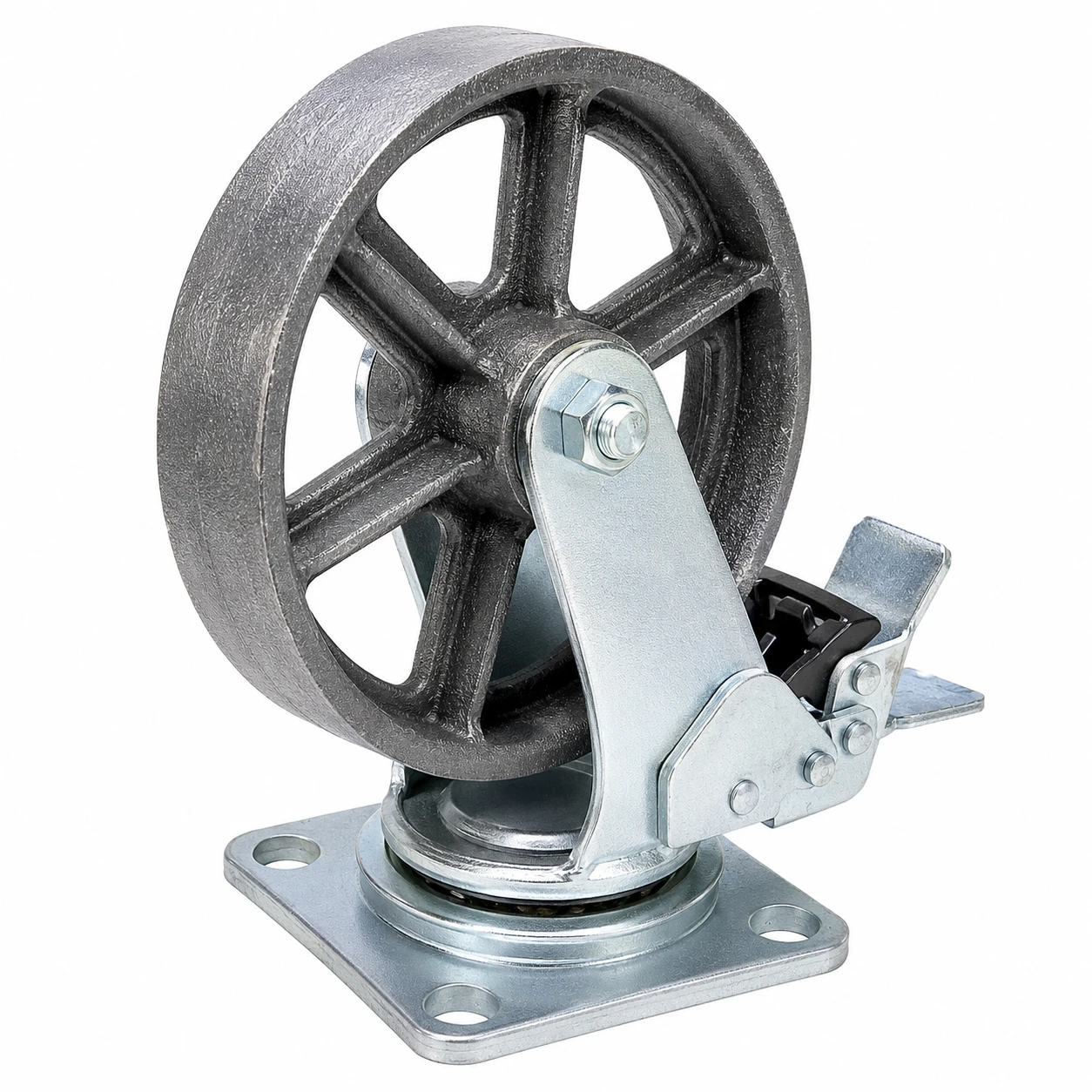

Iron Wheel Swivel with Brake (HQ)
- Heavy-duty cast iron wheel
- 360° swivel with foot-operated total lock brake
- Strong galvanized steel bracket
- Ideal for industrial, factory, and warehouse applications requiring secure positioning
