Iron Wheel Caster Specifications (HQ)
| Size | Type | Wheel Diameter | Wheel Width | Overall Height | Top Plate (L × W) | Bolt Hole Spacing | Approx. Weight | Load Capacity* |
|---|
| | | | | | | |
|
| 6" | Fixed | 150 mm | 50 mm | 190 mm | 115 × 100 mm | 85 × 72 mm | 3.8–4.4 kg | 500 kg |
| 6" | Swivel | 150 mm | 50 mm | 190 mm | 115 × 100 mm | 85 × 72 mm | 4.1–4.8 kg | 500 kg |
| 6" | Swivel with Brake | 150 mm | 50 mm | 190 mm | 115 × 100 mm | 85 × 72 mm | 4.4–5.0 kg | 500 kg |
| | | | | | | |
|
*Load capacities are approximate per caster and may vary depending on the manufacturer and operating conditions.
Brand : Harlem
STOCK No. :
- SS4163 FIXED
- HS4159 SWIVEL
- HS4167 SWIVEL WITH BRAKE

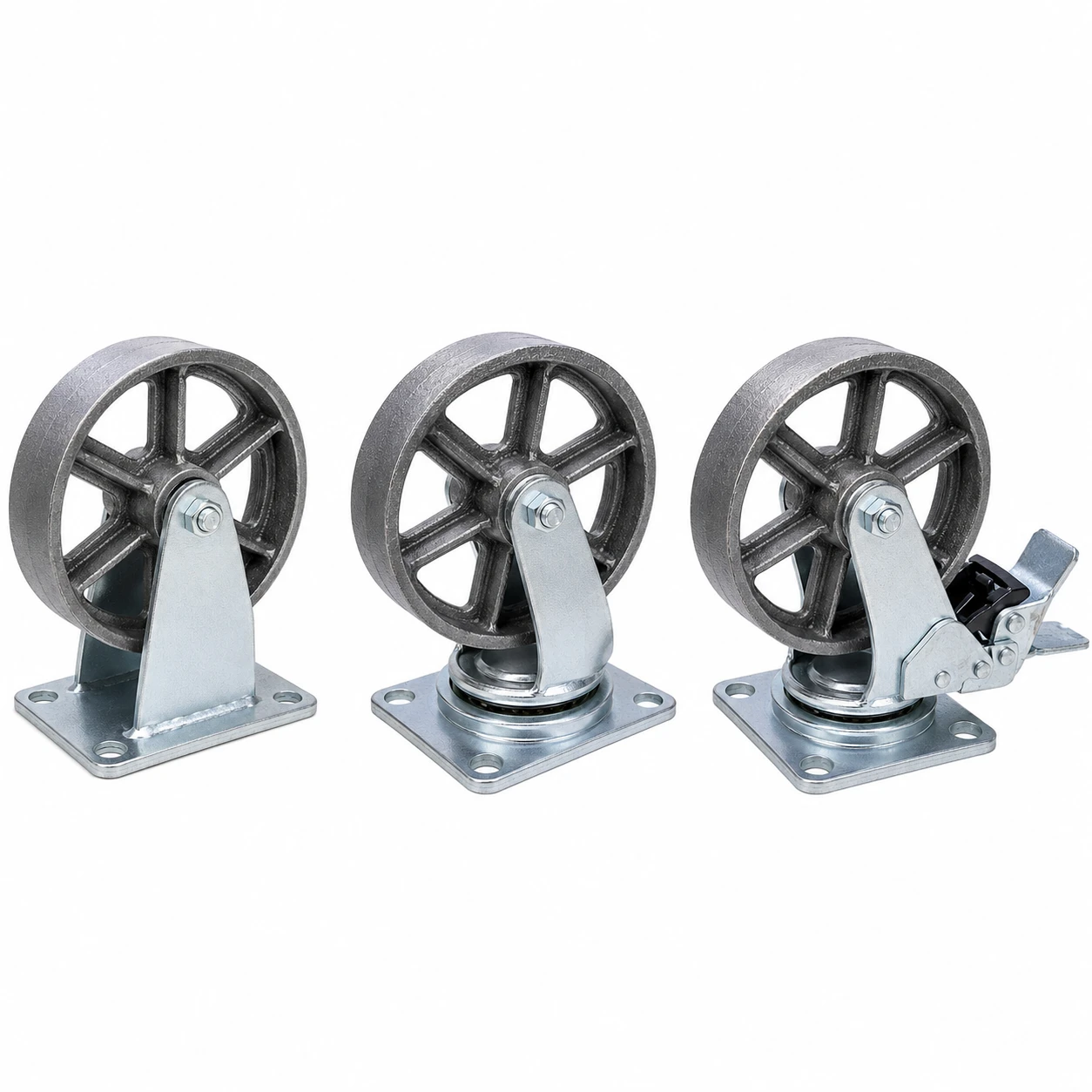

Catalogue Product Description
Iron Wheel Fixed (HQ)
- Heavy-duty cast iron wheel
- Rigid (fixed) mounting
- Zinc-plated steel bracket
- Suitable for industrial carts, machinery, warehouse trolleys, and material handling equipment
Iron Wheel Swivel (HQ)
- Heavy-duty cast iron wheel
- Smooth 360° swivel action
- Zinc-plated steel bracket
- Designed for easy maneuverability under heavy loads
Iron Wheel Swivel with Brake (HQ)
- Heavy-duty cast iron wheel
- 360° swivel with foot-operated total lock brake
- Strong galvanized steel bracket
- Ideal for industrial, factory, and warehouse applications requiring secure positioning
