FEATURES:

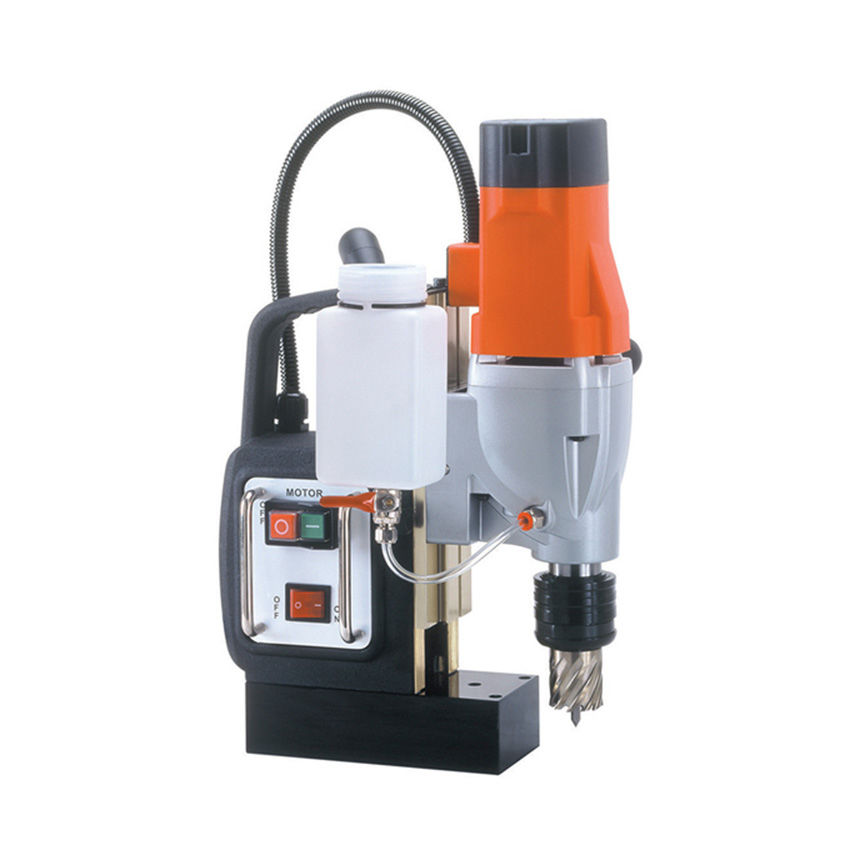

- Magnetic Drill for medium size cutters
- 2 speed mechanical gearbox for added versatility
- Tool-free quick-release arbor for fast cutter changes
- Variable slide height allows quick conversion between cutters and twist drills
- Optional quick-release twist drill chuck adaptor fits directly into the arbor
SPECIFICATIONS:
| Model |
SMD352 |
SMD502 |
|---|
| Power Input |
1100W |
1100W |
|---|
| Voltage |
110-120V~ 50-60Hz,
220-240V~ 50-60Hz |
110-120V~ 50-60Hz,
220-240V~ 50-60Hz |
|---|
| No / Full Load Min-1 | Speed 1 |
450 / 270 |
300 / 180 |
|---|
| | Speed 2 |
730 / 440 |
450 / 270 |
|---|
| Max. Capacity | Dia. X Depth Of Cut |
35mm x 50mm ( 1-3/8" x 2") |
50mm x 50mm (2" x 2") |
|---|
| | Dia. X Depth Twist Drill Bit |
13mm x 140mm
(1/2" x 5-1/2") |
13mm x 140mm
(1/2" x 5-1/2") |
|---|
| Magnetic Adhesion |
17,000 N |
17,000 N |
|---|
| Net Weight |
16kg (33.07 Lbs) |
16kg (33.07 Lbs) |
|---|
Standard Accessories: Wrench M8, Hex.key M2.5 & M4, Coolant tank Kit, Safety Chain, Chip Guard Kit
